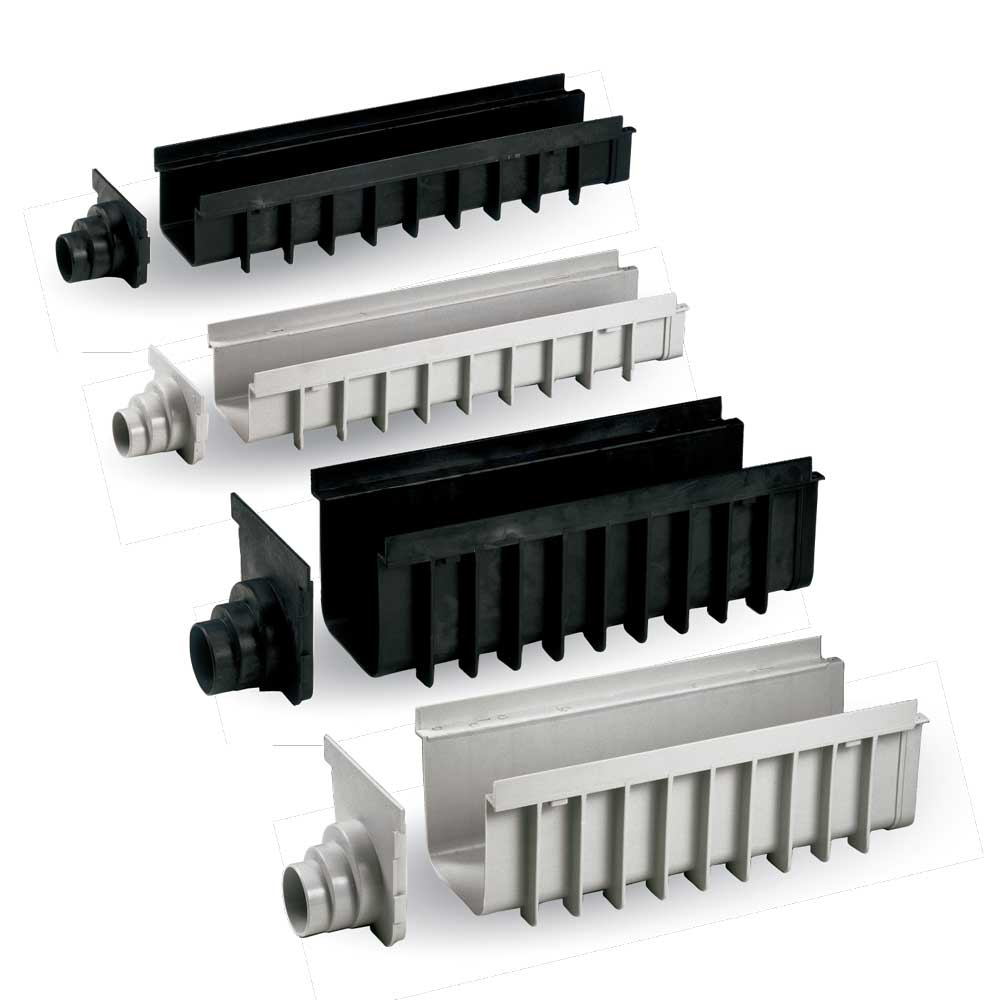

Polypropylene modular channel “MAXIMA” type with end cap exit and closure

Descubrir todas las ventajas Solicitud de información
Polypropylene modular channel “MAXIMA” type with end cap exit and closure

Manufactured in polypropylene, it is provided with high resistant reinforcement side ribs.

Every element, 500 mm long, has 2 different vertical exits on the bottom.

A wide range of polypropylene and metal gratings completes the range.

Channel “SPECIAL” 130x500mm

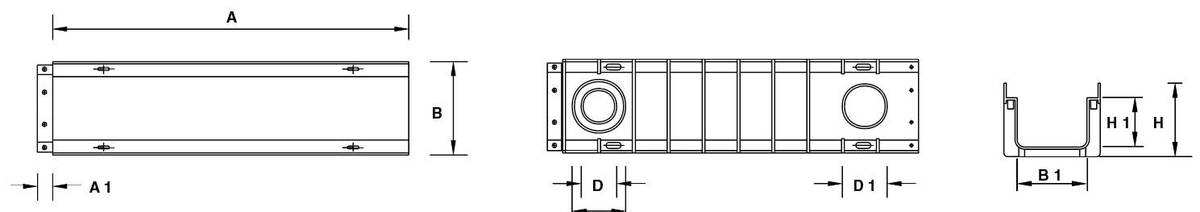

spacial channel scheme



PRODUCT

Code Size Type Colo Exit pipe A A1 B B1 D D1 D2 H H1
I050113051 130 x 500 h. 100 mm Grigio Ø 50 - 63 - 75 mm 500 20 133 95 50 63 75 100 67
I050113050 130 x 500 h. 100 mm Nero Ø 50 - 63 - 75 mm 500 20 133 95 50 63 75 100 67



End cap "special" type

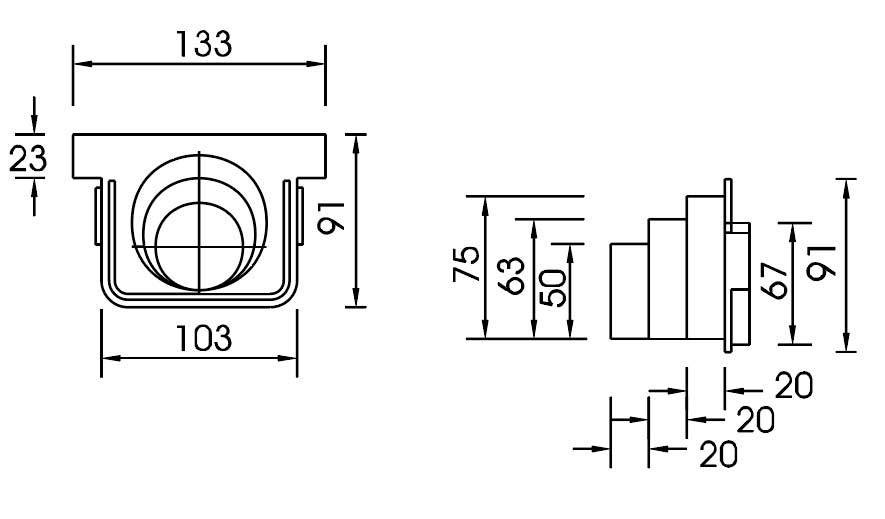

end cap special scheme



PRODUCT

Code Exit pipe Color
I070113051 Ø 50 - 63 - 75 mm Grey
I070113050 Ø 50 - 63 - 75 mm Black



Channel “SPECIAL” 200x500mm

spacial channel scheme



PRODUCT

Code Size Type Color Exit pipe A A1 B B1 D D1 D2 H H1
I050120051 200 x 500 h. 185 mm Grigio Ø 75-90-110 mm 500 20 206 153 75 90 110 185 143
I050120050 200 x 500 h. 185 mm Nero Ø 75-90-110 mm 500 20 206 153 75 90 110 185 143



End cap "SPECIAL" type

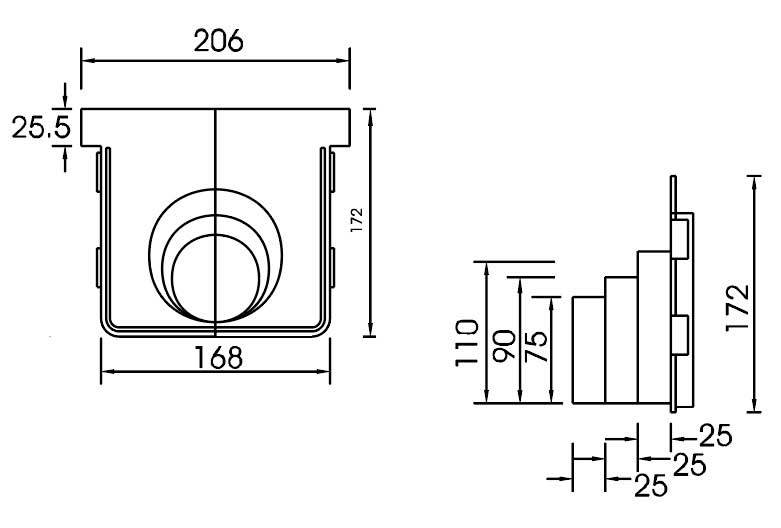

schema tappo special



PRODUCT

Code Type and size For channel
I070120051 Ø 75-90-110 mm Grey
I070120050 Ø 75-90-110 mm Black
