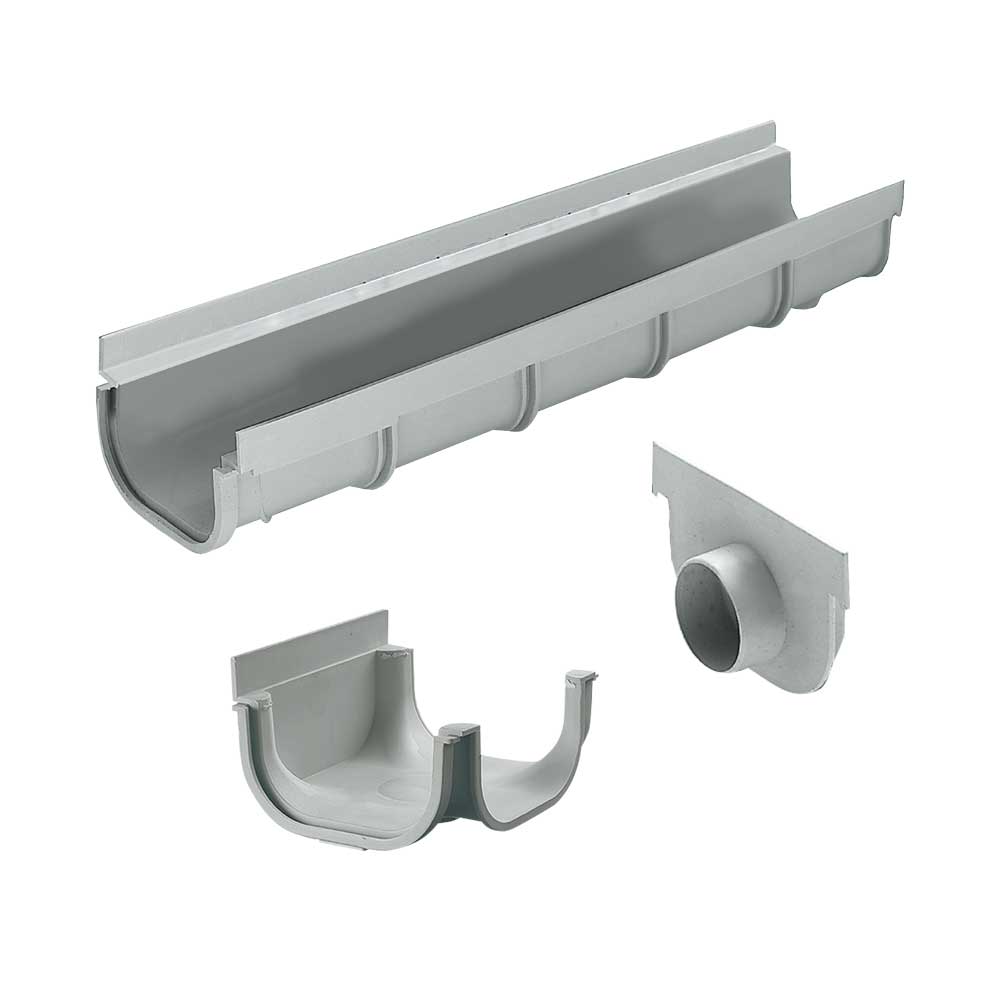

Polypropylene modular channel “STANDARD” type with end cap
Manufactured in polypropylene, it is provided with high resistant reinforcement side ribs. Every element, 500 mm long, has 2 different vertical exits on the bottom.
A wide range of polypropylene and metal gratings completes the range.
Polypropylene modular channel “standard” type
PRODUCT
| Code | Size | Type | Color | Exit pipe | A | A1 | B | D | D1 | H | H1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| I050013050 | 130 x 500 | h. 80 mm | grey | Ø 50 | 500 | 498 | 133 | 50 | 50 | 80 | 55 |
End cap standard type
PRODUCT
| Code | Size | Exit pipe | Color |
|---|---|---|---|
| I070013050 | 130 x 500 | Ø 50 | Grey |
End coupling
PRODUCT
| Code | Color | A | B | H | H1 |
|---|---|---|---|---|---|
| I069013050 | Grey | 133 | 133 | 80 | 50 |
